MV Power Cable

INDOCABLES Medium Voltage (MV) Power Cables are designed for safe and reliable transmission of electrical power across utility networks, substations, power plants, and industrial…

Key Characteristics — Medium Voltage Cable

High Current Carrying Capacity
Low Electrical Loss
Heat Resistant
Superior Mechanical Strength
Long Life
UV Resistant
Flame retardant
Resistant to Weather Exposure
Resistant to oil, water, and harsh chemicals
Termite Resistant

About our MV Cables

INDOCABLES Medium Voltage (MV) Power Cables are designed for safe and reliable transmission of electrical power across utility networks, substations, power plants, and industrial distribution systems. Engineered for operating voltages from 3.3 kV up to 66 kV, these cables provide stable electrical performance and long operational life under continuous load and demanding service conditions.

Manufactured using high-conductivity copper or aluminium conductors with advanced XLPE insulation systems, INDOCABLES MV cables offer excellent dielectric strength, thermal endurance, and mechanical integrity. Available in single-core and three-core constructions, these cables are suitable for underground laying, ducts, trenches, trays, and direct burial installations. Enhanced resistance to UV radiation, moisture ingress, chemicals, and environmental exposure, along with optional halogen-free flame-retardant properties, ensures dependable performance and compliance with applicable Indian and international standards.

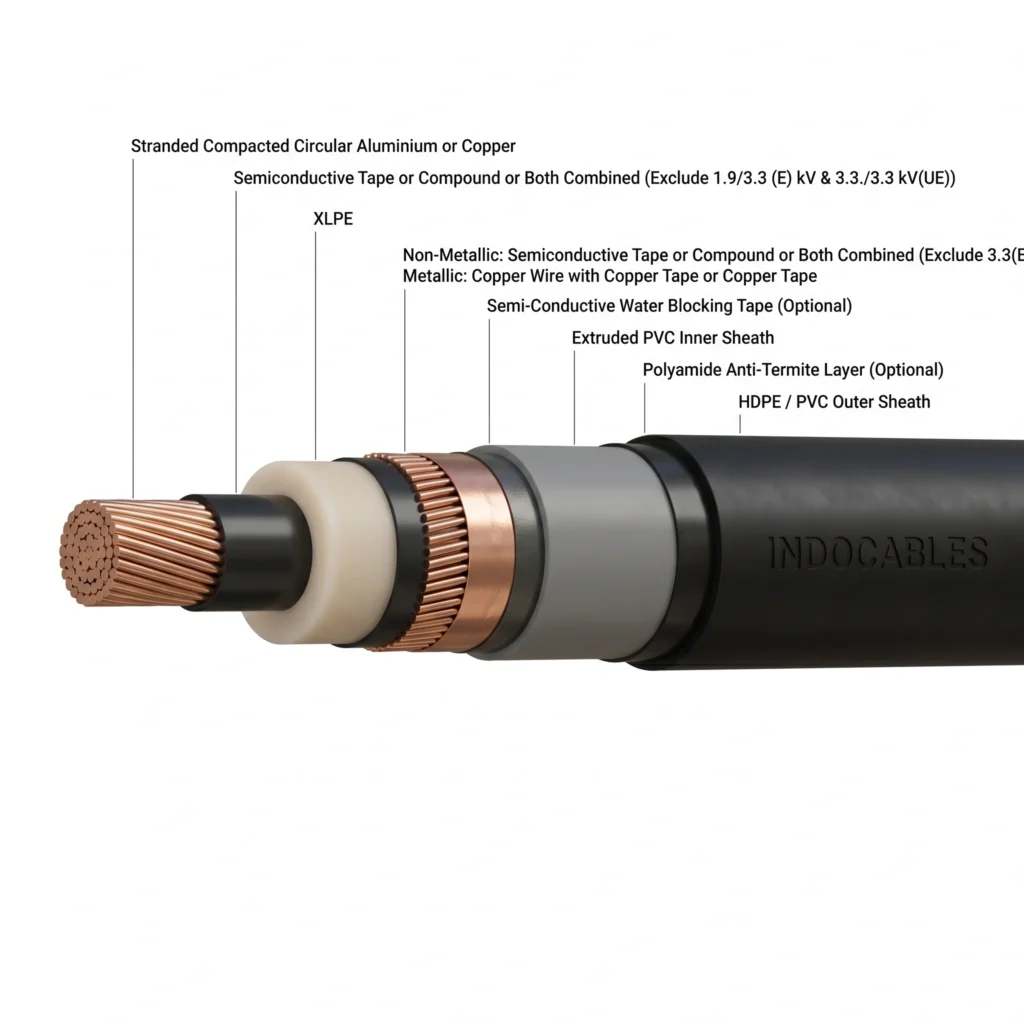

Construction OVERVIEW – Single Core Cables

VOLTAGE	1.9 kV to 33 kV
CONDUCTOR	Stranded Compacted Circular Aluminium or Copper
CONDUCTOR SCREEN	Semiconductive Tape or Compound or Both Combined (Exclude 1.9/3.3 (E) kV & 3.3./3.3 kV(UE))
INSULATION	XLPE
INSULATION SCREEN	Non-Metallic: Semiconductive Tape or Compound or Both Combined (Exclude 3.3(E) & 3.3(UE) Metallic: Copper Wire with Copper Tape or Copper Tape
Taping	Semi-Conductive Water Blocking Tape (Optional)
Inner Sheath	Extruded PVC Inner Sheath
Taping	Polyamide Anti-Termite Layer (Optional)
Outer Sheath	HDPE / PVC Outer Sheath

Available Range

25 sq.mm to 1000 sq.mm (1.9 kV to 11 kV)

35 sq.mm to 1000 sq.mm (12.7 / 22 kV)

50 sq.mm to 1000 sq.mm (19 / 33 kV)

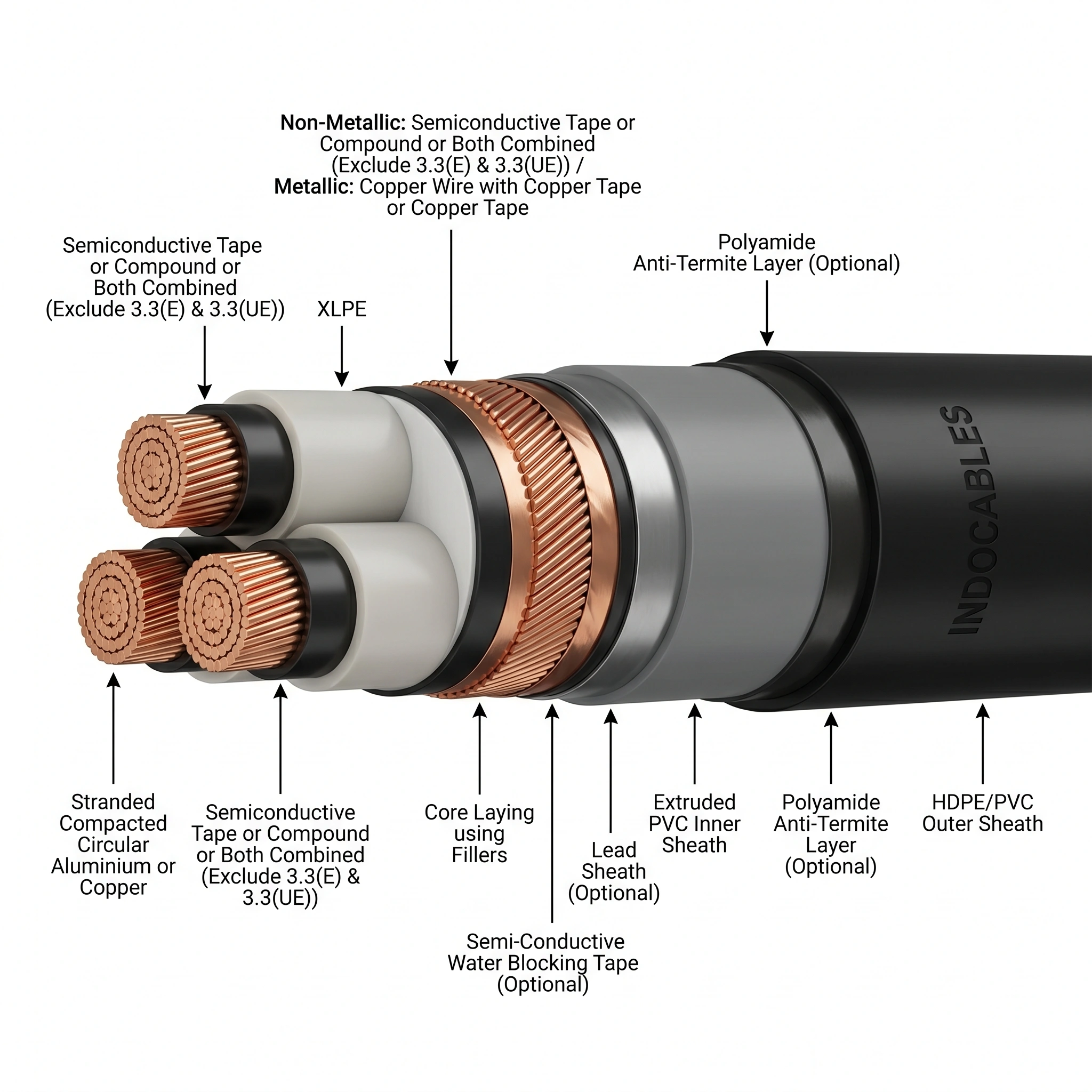

Construction OVERVIEW - Three Core Cables

VOLTAGE	1.9 kV to 33 kV
CONDUCTOR	Stranded Compacted Circular Aluminium or Copper
CONDUCTOR SCREEN	Semiconductive Tape or Compound or Both Combined (Exclude 3.3(E) & 3.3(UE))
INSULATION	XLPE
INSULATION SCREEN	Non-Metallic: Semiconductive Tape or Compound or Both Combined (Exclude 3.3(E) & 3.3(UE) Metallic: Copper Wire with Copper Tape or Copper Tape
Laid Up	Core Laying using Fillers
Taping	Semi-Conductive Water Blocking Tape (Optional)
Metallic Sheath	Lead Sheath (Optional)
Inner Sheath	Extruded PVC Inner Sheath
Taping	Polyamide Anti-Termite Layer (Optional)
Outer Sheath	HDPE/PVC Outer Sheath

Available Range

25 sq.mm to 500 sq.mm (1.9 kV to 11 kV)

35 sq.mm to 500 sq.mm (12.7 / 22 kV)

50 sq.mm to 500 sq.mm (19 / 33 kV)
