Aerial Bunched Cable
INDOCABLES Aerial Bunched Cables are designed for safe and efficient overhead power distribution across urban, semi-urban, and rural electrification networks. Engineered as a…
Key Characteristics — Aerial Bunched Cable
Low Electrical Loss
High Current Carrying Capacity
Heat Resistant
Superior Mechanical Strength
Weather Resistant
UV Resistant
Moisture Resistant
Long Life
About our Aerial Bunched Cable
INDOCABLES Aerial Bunched Cables are designed for safe and efficient overhead power distribution across urban, semi-urban, and rural electrification networks. Engineered as a modern alternative to conventional bare conductor systems, these cables improve network safety, reduce power theft, minimise faults caused by accidental contact, and enhance reliability in low and medium voltage distribution lines.
Manufactured using high-conductivity aluminium conductors with UV-stabilised weather-resistant insulation, INDOCABLES ABC cables offer excellent electrical performance and long-term durability under continuous outdoor exposure. Suitable for pole-mounted installations in congested areas, coastal regions, vegetation-dense zones, and theft-prone distribution networks, these cables provide dependable operation and compliance with applicable Indian and international distribution standards.

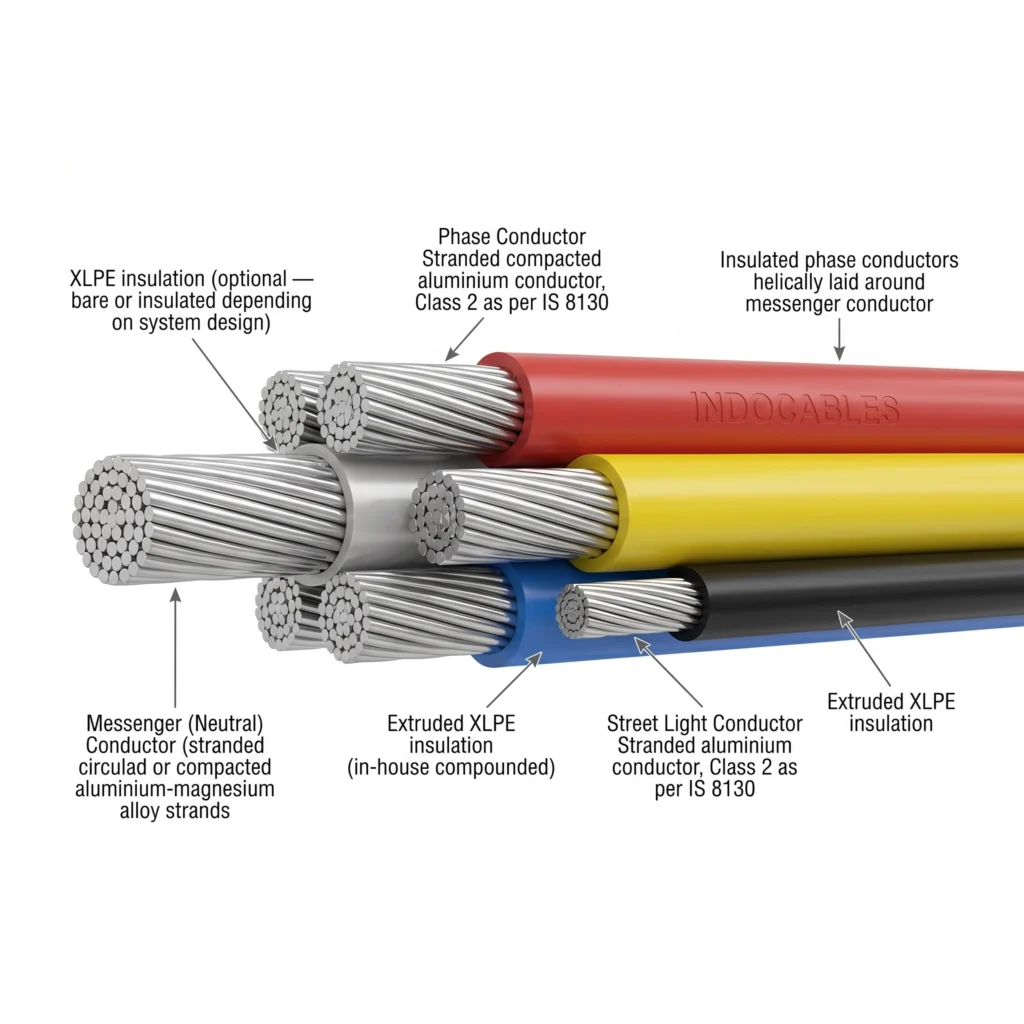

CONSTRUCTION OVERVIEW - Aerial Bunched Cable (ABC) — 1.1 kV
| Layer | Description |
|---|---|
| Phase Conductor | Stranded compacted aluminium conductor, Class 2 as per IS 8130 |
| Phase Insulation | Extruded XLPE insulation (in-house compounded) |
| Messenger (Neutral) Conductor | Stranded circular or compacted heat-treated aluminium-magnesium alloy conductor as per IS 398 (Part 4) |
| Messenger Insulation | XLPE insulation (optional — bare or insulated depending on system design) |
| Street Light Conductor (Optional) | Stranded aluminium conductor, Class 2 as per IS 8130 |
| Street Light Insulation | Extruded XLPE insulation |
| Assembly | Insulated phase conductors helically laid around messenger conductor |
Range — Aerial Bunched Cable (ABC) — 1.1 kV
Voltage Grade: 1.1 kV
Size (Phase): 16 sq.mm – 150 sq.mm
Messenger: 25 sq.mm – 150 sq.mm Al-Mg Alloy
Core: 1 + 1, 3 + 1, 3 + 1 + 1 (with street light)

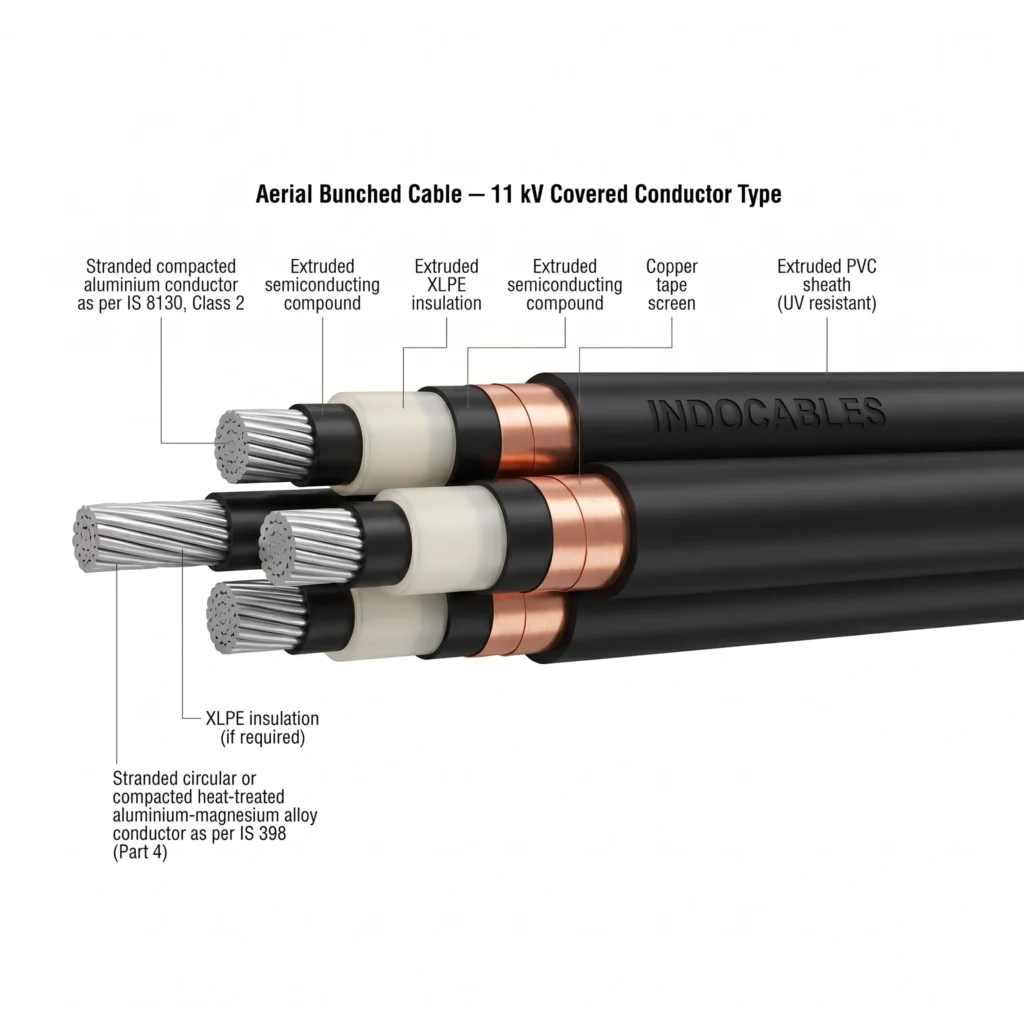

CONSTRUCTION OVERVIEW - Aerial Bunched Cable — 11 kV Covered Conductor Type)
(This is NOT normal ABC — this is MV covered conductor. Important difference.)
| Layer | Description |
|---|---|
| Phase Conductor | Stranded compacted aluminium conductor as per IS 8130, Class 2 |
| Conductor Screen | Extruded semiconducting compound |
| Insulation | Extruded XLPE insulation |
| Insulation Screen | Extruded semiconducting compound |
| Metallic Screen | Copper tape screen |
| Outer Sheath | Extruded PVC sheath (UV resistant) |
| Messenger Conductor | Stranded circular or compacted heat-treated aluminium-magnesium alloy conductor as per IS 398 (Part 4) |
| Messenger Insulation | XLPE insulation (if required) |
| Assembly | Covered phase conductors laid with messenger support wire |
Range — Aerial Bunched Cable — 11 kV (Covered Conductor Type)
Voltage Grade: 11 kV
Size (Phase): 35 sq.mm – 150 sq.mm
Messenger: 50 sq.mm – 150 sq.mm Al-Mg Alloy
Core: 3 Covered Phases + Messenger
